Metal tube end forming processing technology: A precise and efficient modern manufacturing process

Metal tube end forming processing technology: A precise and efficient modern manufacturing process

Metal tube end forming is a kind of precision processing technology that changes the shape and size of the end of metal tubes through plastic deformation. The core objective is to manufacture connection ports with high strength, high sealing performance and complex geometries without damaging the material properties. This technology is directly related to the reliability and safety of pipeline systems in key fields such as aerospace, nuclear power and high-end equipment manufacturing.

Overview of Core Process Methods

According to the deformation principle and application scenarios, the end forming of metal tubes is mainly classified into the following categories:

Progressive Flanging and Local Forming

This method uses a tool head (such as a ball-ended metal rod) to continuously and progressively extrude the local area of the tube end, gradually extending and shaping the material. Its greatest advantage is that it requires less forming force and can effectively prevent common defects such as wrinkling and cracking in thin-walled tubes during processing. It is particularly suitable for flanging thin-walled metal tubes.

· Typical technology: Single-point progressive flanging with variable angle.

· Key advantages: Stable processing, high surface quality, and small fluctuation range.

· Applicable scenarios: Thin-walled pipe fittings with high requirements for surface quality and precision.

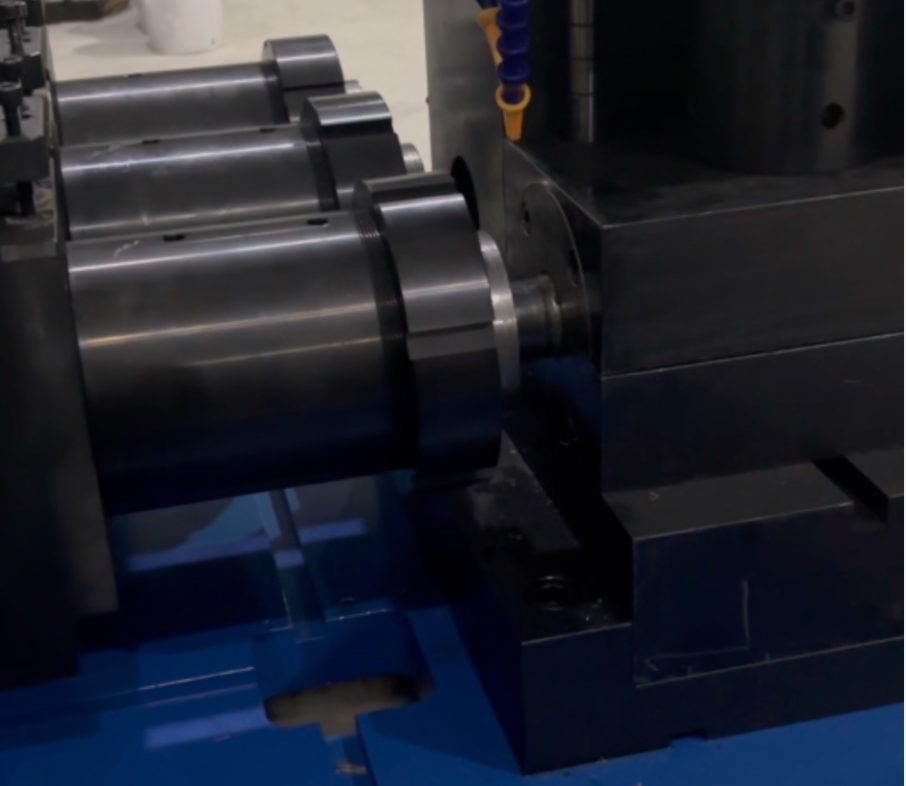

2. Cold Extrusion and Upsetting Extrusion Forming

This process involves applying a huge axial pressure to the end of a tube at room temperature or low temperature through a die, causing the metal to flow within the die cavity, thereby thickening, expanding, or forming a specific shape (such as a flange). It is a non-cutting plastic processing method.

· Typical technologies: Multi-step upsetting and extrusion process, cold extrusion of pipe end for closing.

· Key advantages: Continuous fiber structure of processed parts, high strength; burr-free processing, high material utilization rate.

· Applicable scenarios: Brake system pipe fittings, hydraulic couplings, integrated pipe fittings for faucets, etc.

3. Bending and Integral Forming

This type of technology focuses on the overall or partial bending and forming of tubes, used for manufacturing conduits with complex spatial orientations. Modern techniques have achieved integrated bending, cutting, and measurement for highly efficient forming, significantly enhancing precision and efficiency.

· Typical technologies: High-precision continuous bending technology, integrated forming of complex spatial tubes.

· Key advantages: Multiple processes can be completed at one time, achieving near-net shape forming with a low cross-sectional distortion rate (controllable within 3.22%).

· Applicable scenarios: Aerospace engine pipelines, nuclear power system pipelines, etc.

4. Welding and Splicing Forming

For super-large diameter or special-structured pipes, welding is the main method for end treatment and connection. Advanced welding techniques are employed to ensure the shape, size and performance of the pipe ends.

· Typical technologies: Spiral seam submerged arc welding, high-performance copper tube roll welding.

· Key advantages: Capable of manufacturing super-large-sized structures (such as a one-piece formed copper tube with a diameter of 2.4 meters and a length of 7.5 meters), with weld quality meeting the highest flaw detection standards.

· Applicable scenarios: Giant crystallizers, super-large-diameter conveying pipes (such as municipal water supply and drainage, wind power tower cylinders).

Key technological advancements and innovation highlights

The breakthroughs in modern pipe end forming technology are mainly reflected in the following dimensions:

· A Leap in Forming Quality and Precision

Through process innovation, the forming quality has been fundamentally improved. For instance, the variable-angle incremental forming can effectively reduce the initial radial forming force by approximately 30%, significantly reducing defects. In the bending of aerospace tubes, the continuous bending technology can precisely control the cross-sectional distortion rate within 3.22%. Meanwhile, technologies such as seamless hydroforming have achieved no leakage channels at the connection points, significantly enhancing reliability.

· A Notable Increase in Processing Efficiency

Automation and integration are the keys to enhancing efficiency. The integrated bending, cutting, and measuring equipment has reduced the forming time of a single aerospace tube from 50 minutes to within 4 minutes, and the number of molds has also been greatly reduced. For large-diameter welded pipes, the spiral seam submerged arc welding process can increase production efficiency by more than four times compared to traditional straight seam welding.

· Expansion of Material Application Boundaries

Current technologies can handle a variety of high-performance and difficult-to-process materials. Advanced extrusion forming technology is applicable to special alloys such as titanium/molybdenum/nb and nickel-based superalloys, with product qualification rates reaching over 98%. The high-strength and high-conductivity integrated forming copper tubes developed by the team from Northeastern University have solved the worldwide problem of the difficulty in balancing the strength and conductivity of copper tubes.

· Full Lifecycle and Intelligence

Technological development not only focuses on manufacturing but also extends to repair and remanufacturing. For example, advanced copper tube repair technology can ensure that the service life of the repaired crystallizer is no less than that of the original product, practicing the concept of green manufacturing. At the same time, digital manufacturing platforms integrating multi-sensor measurement and intelligent planning control have become the cutting-edge direction in the industry.

Main application fields and value

Metal tube end forming technology is the cornerstone of high-end manufacturing, and its value is fully demonstrated in harsh application environments.

· Aerospace and aviation: This is one of the fields with the highest technical requirements. It requires the processing of complex space tubes made of high-temperature alloys, titanium alloys, and other materials. The tubes must maintain extremely high inner wall smoothness and cross-sectional accuracy even under extremely small bending radii to ensure the absolute safety of fuel and hydraulic systems.

· Energy equipment and nuclear power: Whether it is the heat exchanger support profiles for the "Hualong One" nuclear power plant or the giant copper crystallizers for 100-ton electroslag furnaces, they all rely on high-performance tubes and tube end forming technologies. High-performance copper tubes can increase the service life of crystallizers by 3 to 5 times, saving hundreds of millions of yuan annually.

· Rail transportation and heavy machinery: Precision tube end forming parts used in the manufacturing of braking systems and hydraulic pipelines require extremely high fatigue strength and sealing reliability. The multi-step upsetting and extrusion process provides a forging-level connection solution for the braking systems of railway freight cars.

· Major infrastructure projects: Super-large diameter thick-walled spiral welded pipes are used in bridge pile foundations, artificial island cofferdams, deep-sea pipelines, etc. The forming and welding quality of the pipe ends directly affects the safety and lifespan of the overall structure.

Future development trends

In the future, the technology of metal tube end forming will deeply integrate and develop in the following directions:

· Parallel development of super-large-scale and ultra-precision: On the one hand, it meets the requirements of nuclear fusion and large-scale equipment (such as 2.4-meter diameter copper tubes) for the forming of super-large diameter and thick-walled components; on the other hand, it pursues sub-millimeter precision forming capabilities for aerospace micro-piping.

· Deep integration of intelligence and digitalization: By integrating visual inspection, force control sensing, and AI process optimization, a fully digital closed loop from design, simulation, processing to inspection is achieved, forming an "intelligent manufacturing unit".

· Green and sustainable manufacturing: Further develop high-performance repair and remanufacturing technologies to extend the overall lifespan of key pipe fittings; promote cold forming processes with no or little cutting and pollution to improve material utilization and reduce energy consumption.

Metal tube end forming technology has evolved from an auxiliary processing method to a core manufacturing process that directly determines the performance, safety and lifespan of high-end equipment. With the continuous emergence of new materials and structures, this technology will continue to evolve, providing more precise, reliable and efficient manufacturing solutions for modern industry.
